ENSAIO PICTÓRICO

The spectrum of imaging findings in takotsubo cardiomyopathy: a pictorial essay

Espectro dos achados de imagem na cardiomiopatia de takotsubo: um ensaio iconográfico

Camila Vilas Boas Machado1,a; Roberto Sasdelli Neto1,b; Gilberto Szarf1,c; Walther Yoshiharu Ishikawa1,d; Eduardo Kaiser Ururahy Nunes Fonseca1,e

DOI: 10.1590/0100-3984.2025.0019
e20250019
Publish in: August 5 2025

ABSTRACT

Takotsubo cardiomyopathy is an important differential diagnosis for acute chest pain. Imaging tests, such as ventriculography, echocardiography, computed tomography of the heart, and cardiac magnetic resonance, are valuable tools for diagnostic confirmation in this context. This study reviews the literature and exemplifies the spectrum of typical and atypical cardiac magnetic resonance findings in this disease, on the basis of the experience of our facility. Recognition of these characteristics underscores the roles that radiologists and cardiologists play in the care of patients with acute chest pain, enabling an accurate diagnosis and appropriate treatment.

Keywords: Chest pain; Takotsubo cardiomyopathy; Cardiac magnetic resonance.

RESUMO

A cardiomiopatia de takotsubo é um diagnóstico diferencial importante de dor torácica aguda. Exames de imagem, seja por ventriculografia, ecocardiograma, tomografia computadorizada do coração ou ressonância magnética cardíaca, são ferramentas valiosas para a confirmação diagnóstica nesse contexto. O presente estudo revisa a literatura e exemplifica o espectro dos achados típicos e atípicos dessa doença observados na ressonância magnética cardíaca, com base na experiência do nosso serviço. O reconhecimento dessas características reforça o papel do médico radiologista/cardiologista na linha de cuidado de pacientes com dor torácica aguda, possibilitando o diagnóstico e tratamento adequado.

Palavras-chave: Dor torácica; Cardiomiopatia de takotsubo; Ressonância magnética cardíaca.

INTRODUCTION

Takotsubo cardiomyopathy, also known as broken-heart syndrome, stress-induced cardiomyopathy, and apical ballooning syndrome, was first described by Sano et al., in 1990(1). Although its exact incidence is unknown, it has been observed in 1–2% of patients with suspected acute coronary syndrome, mainly affecting postmenopausal women(1).

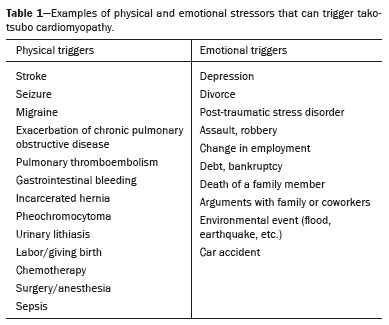

The clinical presentation of takotsubo cardiomyopathy resembles that of acute coronary syndrome, including precordial pain, dyspnea, electrocardiographic changes, and elevated troponin. One peculiar characteristic is that up to two thirds of patients can identify a physically or emotionally stressful event (Table 1) that occurred prior to the onset of symptoms(2,3).





Although the pathophysiology of takotsubo cardiomyopathy is not completely understood, it is believed to be related to excessive catecholamine discharge, secondary to the stressful event, associated with differences in the density and distribution of adrenergic receptors in the myocardium. Reduced estrogen levels also appear to be involved(1,3).

Over the years, various diagnostic criteria have been proposed to help identify takotsubo cardiomyopathy in a patient complaining of acute chest pain. Here, we highlight those proposed by the Mayo Clinic(4), which include the following:

• Transient hypokinesia, akinesia, or dyskinesia of the middle segments of the left ventricle (LV), with or without apical involvement, with segmental changes in contractility extending beyond a coronary territory, with or without an identified stressor stimulus

• Absence of obstructive coronary artery disease or angiographic evidence of acute plaque rupture

• New electrocardiographic changes (ST-segment elevation, T-wave inversion, or both) or slight elevation of troponin

• No pheochromocytoma or myocarditis.

From the time of diagnosis of takotsubo cardiomyopathy, cardiac magnetic resonance (CMR) has a well-established role in the evaluation of patients with the disease, allowing a detailed anatomical analysis, identification of segmental changes in myocardial contractility, and quantification of ventricular function, as well as the detection of edema and myocardial necrosis/fibrosis. It also allows the detection of complications, such as pericardial effusion, pleural effusion, dynamic obstruction of the LV outflow tract, acute pulmonary edema, intracavitary thrombus, and systemic thromboembolism. Finally, it is useful to exclude other pathologies with clinical presentations similar to that of acute coronary syndrome, such as myocarditis(1).

Evaluation with CMR is also important for patient follow-up; it is recommended that it be performed three to six months after the acute event. In most cases, the prognosis is good, with normalization of segmental changes in contractility, recovery of the ventricular ejection fraction, and resolution of edema in the follow-up examination(1).


TYPICAL FINDINGS

Classically, takotsubo cardiomyopathy is characterized by segmental changes in contractility—dyskinesia, hypokinesia, or akinesia of the mid-apical segments of the LV, accompanied by hyperkinesia of the basal segments—this combination resulting in the typical morphology(1,5,6), as illustrated in Figures 1 to 4 and described as similar to a jar used in Japan to capture octopuses, known as a takotsubo.














In addition to contractile changes, CMR allows the detection of myocardial edema, present in at least 80% of patients with takotsubo cardiomyopathy, traditionally on T2-weighted fast spin-echo sequences with triple inversion recovery (Figure 5) and, more recently, on T1 and T2 maps (Figure 6). In most cases, this edema is not accompanied by changes in the image on delayed enhancement sequences (Figure 7), unlike what happens in other conditions, such as acute myocardial infarction and myocarditis(1,5,6).












ATYPICAL FINDINGS

The terms "atypical takotsubo cardiomyopathy" and "variant of takotsubo cardiomyopathy" are used when dyskinesia, hypokinesia, or akinesia affects nontraditional segments, sparing the cardiac apex and involving basal or mid-ventricular segments (Figures 8 to 11), which occurs in up to 40% of cases(4,5).















In addition to unusual segmental changes in contractility, a small proportion of patients may also present with delayed myocardial enhancement (Figure 12), which manifests as small, scattered foci with a clearly non-ischemic pattern, often identified only by quantitative analysis with the aid of software and not persisting in follow-up examinations performed a few weeks after the acute event. Although the pathophysiology of that finding is not yet fully understood, it is believed to be related to changes in proteins (collagen type 1) in the myocardium during the acute phase of the disease, and not to myocardial necrosis or fibrosis(1).





The clinical significance of the variants of takotsubo cardiomyopathy is still an open question. Some clinical differences, such as the involvement of women of a slightly younger age (mean of 62 years) and the association with neurological diseases, have been described. Depression of the ST-segment, lower B-type natriuretic peptide values on admission, and less pronounced changes in the left ventricular ejection fraction are also characteristics that stand out in these cases(7–9).


CONCLUSION

Takotsubo cardiomyopathy is a diagnosis that should be considered in the context of chest pain in an emergency care setting. The use of CMR allows noninvasive diagnosis, providing information additional to that obtained by echocardiography and enabling the detection of any complications(10,11).
