INTRODUCTION

Infections of the central nervous system (CNS) are common, arising from hematogenous dissemination, contiguous propagation (usually from the paranasal sinuses, temporal bone, or skull base), traumatic injuries, or surgical manipulation. Those most frequently affected are the optic, trochlear, trigeminal, abducens, and facial nerves (cranial nerves II, IV, V, VI, and VII, respectively). On magnetic resonance imaging (MRI), abnormal leptomeningeal enhancement along cerebral surfaces and the cisternal segments of cranial nerves is a hallmark of infection and should be correlated with the results of cerebrospinal fluid (CSF) analysis.

Neoplastic conditions of the cranial nerves may be primary or secondary, and the former may be further divided into benign and malignant conditions. To make the diagnosis, it is useful to determine the location of abnormal enhancement and its character (regular or nodular); to identify cystic, necrotic, or hemorrhagic components; and to correlate those data with other imaging findings in the CNS.

Inflammatory and demyelinating diseases may arise from parainfectious and autoimmune processes, presenting with a monophasic, relapsing–remitting, or progressive course. Some of these diseases may cause cranial nerve thickening and abnormal enhancement. The correlation with specific local alterations in the brainstem and spinal cord help distinguish specific etiologies.

In a previous article⁽¹⁾, we reviewed congenital, traumatic, and vascular diseases of the cranial nerves. This pictorial essay goes further, illustrating infectious, neoplastic, and demyelinating diseases, as well as other inflammatory diseases. Although all of the pathologic conditions we review in this paper share the common finding of abnormal contrast enhancement in cranial nerves, each has specific epidemiological, clinical, biochemical, and imaging findings.


INFECTIOUS DISEASES

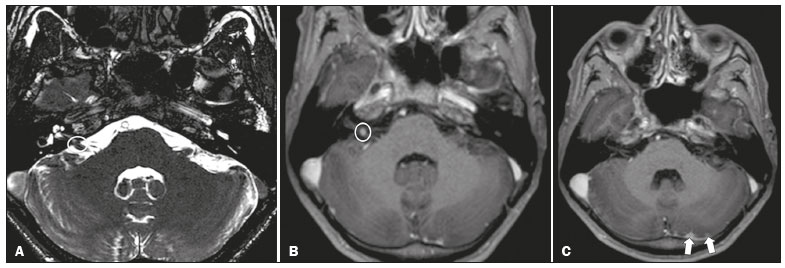

Neuroborreliosis

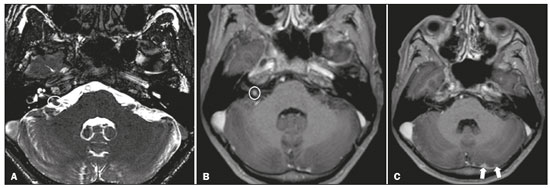

Neuroborreliosis is a systemic inflammatory disease, with a worldwide distribution, that occurs after a bite from the deer tick Ixodes scapularis and inoculation of complex spirochetes of the genus Borrelia (B. burgdorferi, B. afzelii, or B. garinii). The disease occurs in stages, with a variety of signs and symptoms. When there is neurologic involvement, which occurs in 10–15% of infected individuals, it is known as Lyme neuroborreliosis, the mechanisms of which include vasculitis, cytotoxicity, neurotoxic mediators, and immune reactions. Lymphocytic meningitis, cranial neuropathy (particularly facial nerve palsy), and radiculoneuritis constitute the classic triad of acute Lyme neuroborreliosis. An MRI scan can depict enhancement of multiple cranial nerves, with or without signal changes in the white matter (Figure 1). In endemic areas, Lyme neuroborreliosis should be considered when a patient presents with unilateral or bilateral cranial nerve palsy, especially when that is preceded by erythema migrans⁽²⁾.

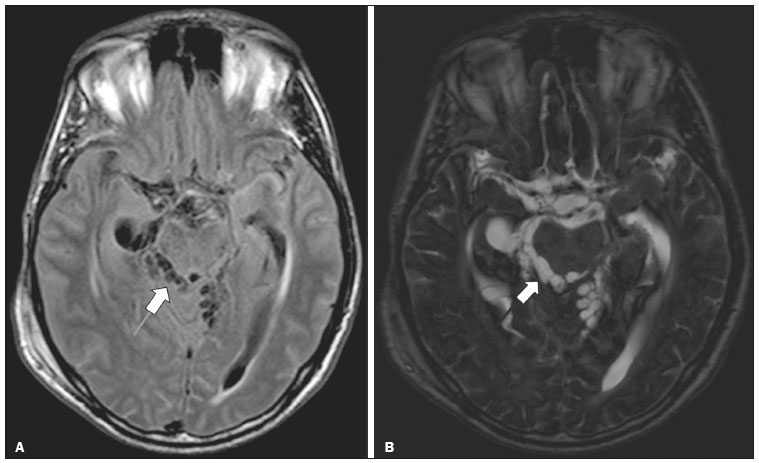

Racemose neurocysticercosis

Cysticercosis is a parasitic infection resulting from ingestion of eggs from an adult Taenia solium pork tapeworm, and its neurologic findings may include cranial nerve pathology⁽³⁾. A cysticercus may have one of two shapes: cystic (vesicle containing a scolex, designated Cysticercus cellulosae) or grape-like (a cluster of vesicles without a scolex, designated Cysticercus racemosus). Racemose cysts, which are typically located in the subarachnoid space, cisterns, or ventricles, can grow to large dimensions, occasionally displacing or constricting adjacent structures (Figure 2). The consequences of neurocysticercosis include vasculitis caused by an inflammatory response to antigens in the parenchyma, basal leptomeninges, compression/displacement of cranial nerves, and ventricular enlargement. The diagnosis is based on the results of a CSF analysis and radiological examinations. Fluid-attenuated inversion recovery (FLAIR) sequences, diffusion-weighted imaging (DWI), and three-dimensional constructive interference in steady-state sequences facilitate visualization of the scolex in C. cellulosae cysts, allowing them to be distinguished from those of C. racemosus.

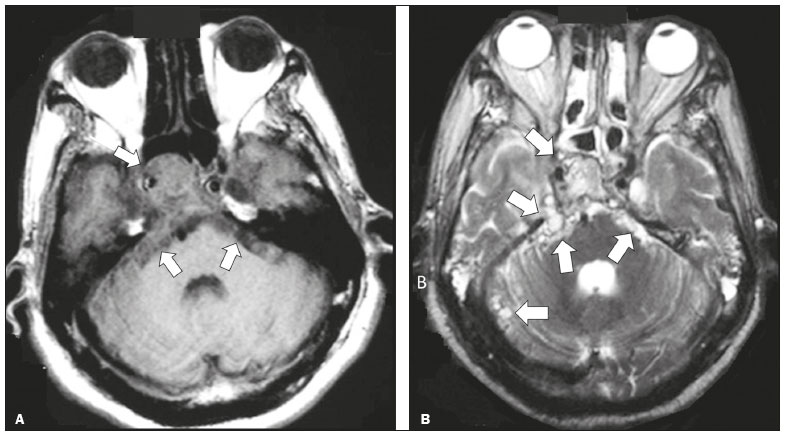

Tuberculous meningitis

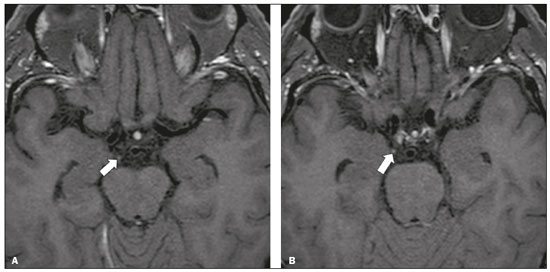

Tuberculosis is a disease that is caused by infection with Mycobacterium tuberculosis and has a worldwide distribution. Neurotuberculosis represents neurologic involvement secondary to hematogenous dissemination and may present as exudative leptomeningitis or as parenchymatous lesions (tuberculoma, abscess, or cerebritis). Cranial neuropathy, which may be caused by vasculitis or inflammation, is seen in 17–70% of patients with CNS tuberculosis⁽⁴⁾. Radiological features of CNS tuberculosis include basal leptomeningeal enhancement, hydrocephalus, and infarctions in the supratentorial brain parenchyma or brainstem, as well as, in some cases, cranial nerve enhancement (Figure 3).

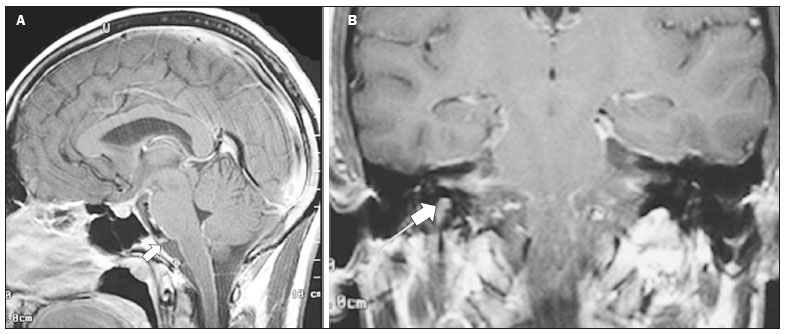

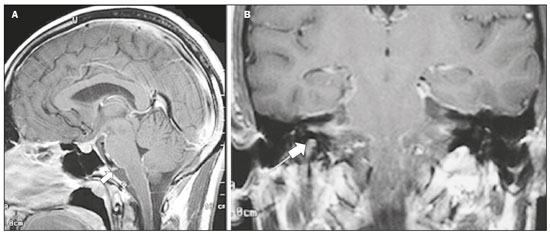

Neurosyphilis

Neurosyphilis is a reemerging infectious disease that can be transmitted sexually and vertically. It has a wide spectrum of neurological manifestations and can mimic many other infectious and inflammatory diseases, as well as tumors and demyelinating processes. Recently, high-resolution vessel wall imaging (HR-VWI) has proven useful to differentiate ischemic lesions from vessel wall inflammation associated with infectious vasculitis, and HR-VWI sequences can depict cranial nerve enhancement in infectious conditions, as demonstrated by Feitoza et al.^(5,6) and illustrated in Figure 4.

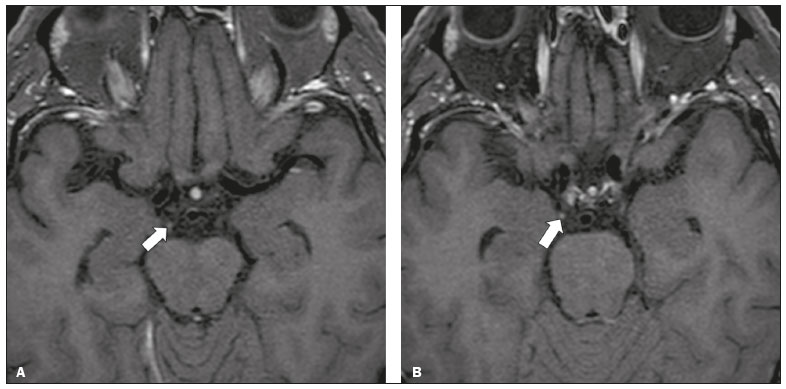

Ramsay Hunt syndrome

Ramsay Hunt syndrome is one of several causes of peripheral facial nerve palsy in the geniculate ganglion. It occurs due to reactivation of latent infection with the varicella-zoster virus, which causes inflammation and neural degeneration⁽⁷⁾. Facial nerve palsy results from edema and compression of the facial nerve (cranial nerve VII) within the narrow facial canal and is accompanied by sensorineural hearing loss, tinnitus, vertigo, nystagmus, and erythematous vesicular rash around the ear (herpes zoster oticus). The MRI features of facial nerve palsy are nonspecific, although contrast enhancement at the fundus of the inner ear canal, representing inflammatory changes, is common. In rare cases, Ramsay Hunt syndrome occurs as a component of multiple cranial nerve involvement, especially that of the trigeminal, glossopharyngeal, and vagus nerves (cranial nerves V, IX, and X, respectively). Edema and enhancement of trigeminal brainstem nuclei can also be seen.

Bell’s palsy

The condition known as Bell’s palsy is a type of facial nerve palsy that can be idiopathic or of suspected viral etiology. It is the most common cause of acute spontaneous peripheral facial paralysis. Herpes simplex virus activation is the likely cause of Bell’s palsy in most cases, although there is no well-established, widely available method of confirming a viral mechanism in clinical practice. Inflammation starts at the geniculate ganglion, extending proximally and distally, causing facial palsy due to neural edema inside the narrow facial canal⁽⁷⁾. Laboratory tests are usually not indicated. However, because at least 10% of affected patients are diabetic, a blood glucose test may be performed. There are several differential diagnoses, including Lyme disease, Ramsay Hunt syndrome, neoplasia, and sarcoidosis. A detailed history-taking usually facilitates the diagnosis. The MRI findings are nonspecific and typically include unilateral facial nerve enhancement.

Paracoccidioidomycosis

Paracoccidioidomycosis is a fungal disease caused by Paracoccidioides spp. (P. brasiliensis or P. lutzii), which can result in systemic granulomatous infection. It is most commonly observed in adult male laborers in rural subtropical areas of Latin America⁽⁸⁾. Involvement of the CNS occurs in 10% of chronic cases, and patients with CNS paracoccidioidomycosis may present with focal neurological deficits, cognitive changes, weight loss, headache, and seizures. The most common CNS lesions are due to granulomatous reactions in the supratentorial and infratentorial parenchyma. However, in some cases, there can be leptomeningeal and pachymeningeal inflammation caused by cranial nerve inflammation. The diagnosis of CNS paracoccidioidomycosis is established by direct detection of the fungus, through biopsy or resection of a granuloma, CSF analysis, or culture. Although the MRI findings are nonspecific, they can contribute to the diagnosis by depicting ring-enhancing lesions in the parenchyma. Leptomeningeal or pachymeningeal enhancement may also be seen.

Echinococcosis

Echinococcosis is a zoonotic infection caused by adult or larval stages of the tapeworms Echinococcus multilocularis and Echinococcus granulosus, which cause alveolar and cystic echinococcosis, respectively. Alveolar echinococcosis is uncommon and occurs secondary to intrahepatic growth of parasitic larvae. Cestodes reach other organs (especially the lungs, brain, and bones) by direct infiltration or hematogenous spread. In individuals with alveolar echinococcosis, cranial nerve palsies have been reported and the symptoms depend on the location of the lesions⁽⁹⁾. Wild canids and domestic dogs act as the definitive hosts of E. granulosus, the causative agent of cystic echinococcosis (also known as hydatid disease), and human infection with E. granulosus occurs through contact with contaminated animals. Neurological involvement, which is rare, may include the brain parenchyma or subarachnoid space (Figure 5).




NEOPLASTIC DISEASES

Petrous apex meningioma

Meningioma is the most common extra-axial tumor and is also the most common non-glial primary CNS tumor. Among petrous apex meningiomas, the most common types are petroclival and cerebellopontine angle meningiomas. Petroclival meningiomas arise from the medial aspect of the petrous apex and progress through its wall or to Dorello’s canal, whereas cerebellopontine angle meningiomas arise from the posterior petrous apex and extend to the internal auditory canal. The MRI findings are variable, although dural-based masses with intense contrast enhancement, often hypointense to brain tissue on T1-weighted imaging (T1WI) and isointense on T2WI, are common findings⁽¹⁰⁾.

Optic nerve pilocytic astrocytoma

Pilocytic astrocytoma is the most common primary brain tumor in children. The structures most often affected are the cerebellum, optic nerve/chiasm, hypothalamus, and thalami. It is commonly associated with neurofibromatosis type 1, especially when it occurs in the optic pathways. In individuals with optic nerve pilocytic astrocytoma, MRI shows well-circumscribed, slow-growing tumors that are hypointense or isointense to brain tissue on T1WI and hyperintense on T2WI/FLAIR sequences, with little or no edema. Enhancement is variable, usually intense. Another common presentation is a cystic lesion with a mural nodule⁽¹¹⁾.

Schwannoma

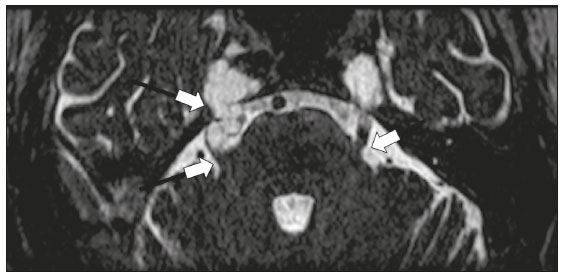

Schwannoma is a benign nerve sheath tumor derived from Schwann cells. It is the most common tumor of the peripheral nervous system. The cranial nerve that is most often affected (in 90% of cases) is the vestibulocochlear nerve (cranial nerve VIII), followed by the trigeminal nerve (cranial nerve V). Acoustic schwannomas grow into the cerebellopontine angle, displacing the brainstem and cerebellum. In most cases, these originate from within the internal auditory canal, the dilation of which is an early radiological sign of tumor growth. Bilateral acoustic schwannomas are pathognomonic of neurofibromatosis type 2, which is a phakomatosis that also increases the chances of meningiomas and ependymomas (multiple inherited schwannomas, meningiomas, and ependymomas), as illustrated in Figure 6.

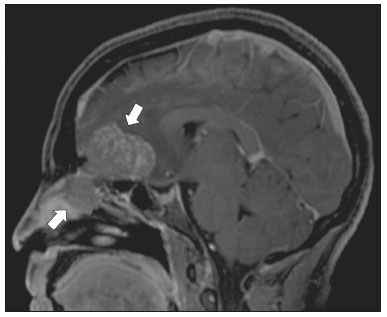

Esthesioneuroblastoma

An esthesioneuroblastoma, also known as an olfactory neuroblastoma, is a malignant neuroectodermal tumor arising from the olfactory mucosa in the upper nasal cavity. It typically affects men, being most common among those in their twenties, with a second peak among those in their sixties. It usually involves the cribriform plate, extending to the upper nasal cavity. Smaller esthesioneuroblastomas will show local spread in the nose and sinuses, whereas larger ones may invade anterior the cranial fossa, brain, and dura mater. Imaging depicts a dumbbell-shaped mass with its narrow segment at the level of cribriform plate, causing local bone destruction⁽¹²⁾, as demonstrated in Figure 7. The Kadish staging system classifies esthesioneuroblastomas as follows: stage A—limited to the nasal cavity; stage B—limited to the nasal cavity and paranasal sinuses; and stage C—extending beyond the nasal cavity and paranasal sinuses, including the skull base, intracranial compartment, and orbit, as well as distant metastases.




Temporal bone paragangliomas

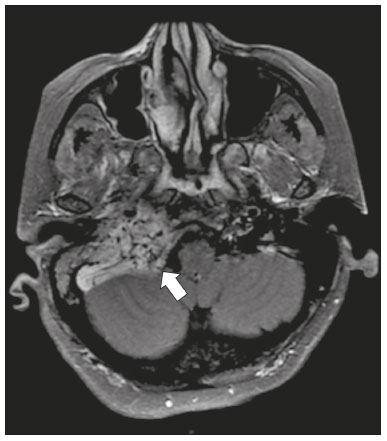

Temporal bone paragangliomas, also known as jugulotympanic paragangliomas, are tumors that arise from the extra-adrenal neuroendocrine system, are composed of neural crest progenitor cells, and are usually benign. Involvement of the jugular foramen is most prevalent among individuals in their fifties or sixties, representing the main cause of pulsatile tinnitus associated with a vascular retrotympanic mass, as identified on physical examination⁽¹³⁾ and depicted in Figure 8.




Carotid body paraganglioma

Paragangliomas may also occur in the carotid space, presenting as a mass between the internal and external carotid arteries. Cranial neuropathy, which is seen in 20% of patients with carotid body paraganglioma, can involve the glossopharyngeal, vagus, accessory, and hypoglossal nerves (cranial nerves IX, X, XI, and XII, respectively). Unenhanced MRI shows punctate vascular flow voids (“salt and pepper” pattern), whereas contrast-enhanced MRI shows a mass with rapid, intense contrast enhancement⁽¹³⁾.


DEMYELINATING DISEASES

Multiple sclerosis

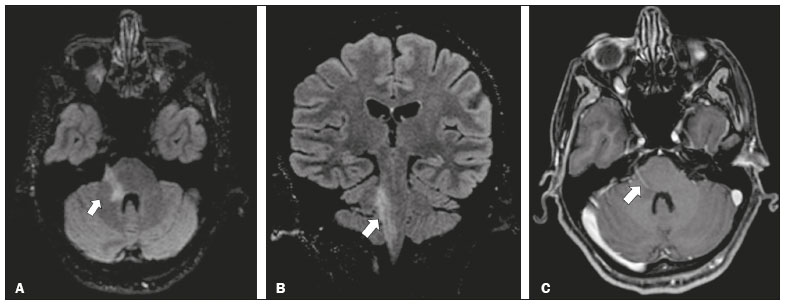

Multiple sclerosis is a multifactorial disorder with an inflammatory autoimmune component, characterized by inflammatory and immune attacks on oligodendrocytes, resulting in demyelination and axonal injury. It is the most common disabling CNS disease in young adults, more often affecting women than men and being most prevalent among individuals 20–40 years of age. The lesions are predominantly located in the white matter, typically in the periventricular region (Dawson’s fingers), corpus callosum, subcortical regions, brainstem, and spinal cord, although they may occur in the gray matter as well. Isolated cranial nerve involvement is uncommon, and cranial nerve injury is frequently seen in conjunction with other brain lesions. The optic and trigeminal nerves (cranial nerves II and V, respectively) are the most affected, although cases of isolated oculomotor nerve (cranial nerve III) dysfunction have also been reported⁽¹⁴⁾. The general imaging features of acute multiple sclerosis are swollen, enhancing areas that are isointense on T1WI and usually bright on T2WI/FLAIR sequences, with or without restricted diffusion on DWI. In the chronic phase, the lesions are usually hypointense and nonenhancing on T1WI (“black holes”), being bright on T2WI/FLAIR sequences, sometimes with visible volume loss or cavitation. Cranial nerves may appear enlarged with marked enhancement⁽¹⁵⁾.

Neuromyelitis optica spectrum disorders

Neuromyelitis optica spectrum disorders constitute a group of autoimmune demyelinating CNS diseases that preferentially affect the optic nerve, periventricular regions (including the area postrema), and spinal cord. They are typically associated with an immune response (neuromyelitis optica-immunoglobulin G antibody against aquaporin 4 channels). In general, the imaging features are longitudinally extensive T2WI hyperintensity within the spinal cord (spanning three or more vertebral segments), as well as enlargement and enhancement of the optic nerve (cranial nerve II). On T2WI, the abnormality tends to involve the spinal cord more centrally or the entire cross-section of the cord, unlike the more peripheral involvement seen in multiple sclerosis⁽¹⁶⁾.

Chronic inflammatory demyelinating polyneuropathy

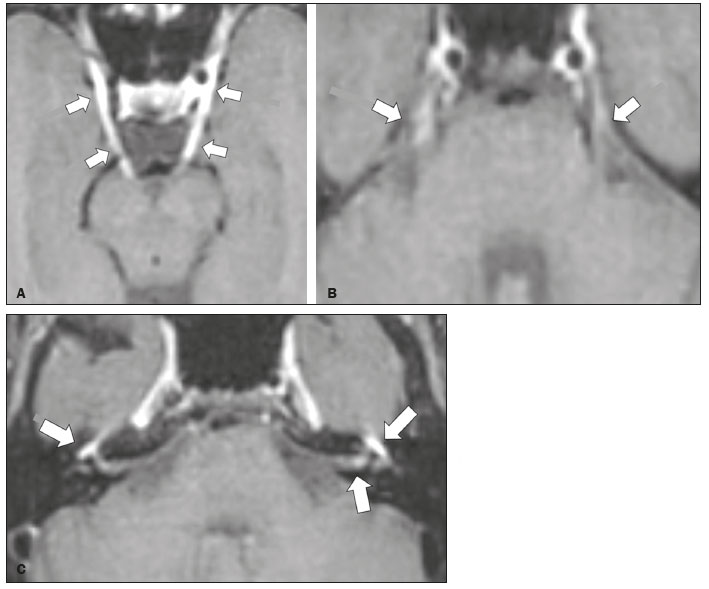

Chronic inflammatory demyelinating polyneuropathy is an acquired sensorimotor idiopathic neuropathy that primarily involves the distal motor nerve. Cranial nerve involvement is seen in 5% of patients, in which MRI may show thickened, enhancing nerves (Figure 9). It has a relapsing-remitting or progressive course of demyelination and may respond to immunosuppressive therapy. The classic symptoms are symmetric proximal and distal weakness, together with sensory loss in two or more limbs. Hyporeflexia or areflexia may also be seen⁽¹⁷⁾.




OTHER DISEASES

Trigeminal neuritis

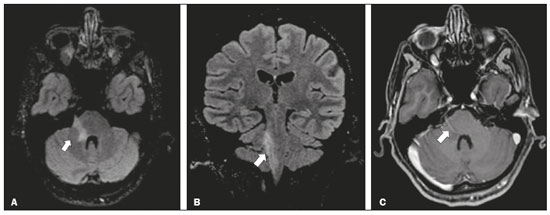

In most cases, trigeminal neuritis is caused by an inflammatory reaction to herpes simplex virus type 1, which lies dormant within the trigeminal ganglion. Retrograde spread along the preganglionic segment of the trigeminal nerve (cranial nerve V) into the brainstem, albeit rare, may cause rhombencephalitis⁽¹⁸⁾, which may involve other cranial nerves as well. The MRI findings include high signal intensity of the inflamed brainstem segment on T2WI and contrast enhancement of the affected nerve on T1WI (Figure 10). We present images of involvement of the nucleus of the facial nerve (cranial nerve VII) ipsilateral to the trigeminal neuritis.




Non-Langerhans cell histiocytosis

Hemophagocytic syndrome, Erdheim-Chester disease, and Rosai-Dorfman disease are all forms of non-Langerhans cell histiocytosis, which is a rare multisystemic disease of the monocyte-macrophage system, with variable severity and radiological presentation. Among children under 15 years of age, it has an incidence of 0.2–2.0 cases per 100,000 population, with a slight predominance of males. The cranial and intracranial changes seen on MRI may include craniofacial bone and skull base lesions, with or without soft-tissue involvement, as well as intracranial and extra-axial changes in the hypothalamic-pituitary region, leptomeninges, cranial nerves, and circumventricular organs⁽¹⁹⁾.


CONCLUSION

This pictorial essay could help narrow the differential diagnosis of nonspecific imaging findings of cranial nerves, which typically include thickening and enhancement. Although infectious, neoplastic, demyelinating, and inflammatory diseases of the cranial nerves may look alike on MRI, scrutiny of other brain imaging findings, correlated with the clinical and biochemical data, facilitates the differential diagnosis. Therefore, radiologists play a key role in making the accurate diagnosis of such diseases.


REFERENCES

1. Dalaqua M, Nascimento FBP, Miura LK, et al. Magnetic resonance imaging of the cranial nerves in congenital, traumatic, and vascular diseases: a pictorial essay. Radiol Bras. 2021;54:185–92.

2. Hildenbrand P, Craven DE, Jones R, et al. Lyme neuroborreliosis: manifestations of a rapidly emerging zoonosis. AJNR Am J Neuroradiol. 2009;30:1079–87.

3. DeGiorgio CM, Medina MT, Durón R, et al. Neurocysticercosis. Epilepsy Curr. 2004;4:107–11.

4. Ahluwalia VV, Sagar G, Singh TP, et al. MRI spectrum of CNS tuberculosis. J Indian Acad Clin Med. 2013;14:83–90.

5. Feitoza LM, Jarry VM, Ramos MC, et al. High-resolution vessel wall MRI as a complementary investigation for CNS tuberculosis. Can J Neurol Sci. 2020;1–2. Online ahead of print.

6. Feitoza LM, Stucchi RSB, Reis F. Neurosyphilis vasculitis manifesting as ischemic stroke. Rev Soc Bras Med Trop. 2020;53:e20190546.

7. Kim IS, Shin SH, Kim J, et al. Correlation between MRI and operative findings in Bell’s palsy and Ramsay Hunt syndrome. Yonsei Med J. 2007;48:963–8.

8. Reis F, Collier PP, Souza TF, et al. Neuroparacoccidioidomycosis (NPCM): magnetic resonance imaging (MRI) findings. Mycopathologia. 2013;175:181–6.

9. Kantarci M, Bayraktutan U, Karabulut N, et al. Alveolar echinococcosis: spectrum of findings at cross-sectional imaging. Radiographics. 2012;32:2053–70.

10. Razek AA, Huang BY. Lesions of the petrous apex: classification and findings at CT and MR imaging. Radiographics. 2012;32:151–73.

11. Koeller KK, Rushing EJ. From the archives of the AFIP: pilocytic astrocytoma: radiologic-pathologic correlation. Radiographics. 2004; 24:1693–708.

12. Taneja AK, Reis F, Queiroz LS, et al. Esthesioneuroblastoma. Arq Neuropsiquiatr. 2009;67(3A):704–6.

13. Lloyd S, Obholzer R, Tysome J, et al. British Skull Base Society clinical consensus document on management of head and neck paragangliomas. Otolaryngol Head Neck Surg. 2020;163:400–9.

14. Bhatti MT, Schmalfuss IM, Williams LS, et al. Peripheral third cranial nerve enhancement in multiple sclerosis. AJNR Am J Neuroradiol. 2003;24:1390–5.

15. Filippi M, Preziosa P, Rocca MA. MRI in multiple sclerosis: what is changing? Curr Opin Neurol. 2018;31:386–95.

16. Dutra BG, Rocha AJ, Nunes RH, et al. Neuromyelitis optica spectrum disorders: spectrum of MR imaging findings and their differential diagnosis. Radiographics. 2018;38:169–93.

17. Kuwabara S, Misawa S. Chronic inflammatory demyelinating polyneuropathy. Adv Exp Med Biol. 2019;1190:333–43.

18. Tien RD, Dillon WP. Herpes trigeminal neuritis and rhombencephalitis on Gd-DTPA-enhanced MR imaging. AJNR Am J Neuroradiol. 1990;11:413–4.

19. Gabbay LB, Leite CC, Andriola RS, et al. Histiocytosis: a review focusing on neuroimaging findings. Arq Neuropsiquiatr. 2014;72: 548–58.
