INTRODUCTION

Using imaging methods to evaluate the musculoskeletal system is a current theme in the recent radiology literature from Brazil^(1-8). In general, radiography is the first step in imaging investigation of backbone diseases, followed by computed tomography (CT) or magnetic resonance imaging (MRI). The radiologist may find, during this primary investigation, vertebrae with increased density, with a "whiter" aspect than usual, similar to ivory, hence the designation ivory vertebra.

In order to interpret the images, it is important first to understand the normal anatomic characteristics and bone makeup of the vertebrae, and then the pathophysiology of the main diseases that may lead to ivory vertebra.


BONE PHYSIOLOGY AND COMPOSITION OF THE VERTEBRAL BODIES

Bone tissue is a specialized connective tissue formed by a mineral phase, composed essentially of calcium phosphate crystals, in the form of hydroxyapatite, deposited in an organized collagenous matrix. This combination allows different bone types to be formed, from spongy bone to secondary bone tissue. These microscopic characteristics are in turn reflected in imaging aspects, such as cancellous bone and cortical, or compact, bone.

Despite their apparently inert aspect, bones are highly dynamic structures undergoing constant remodeling, where osteoclastic resorption is followed by the osteoblastic formation phase, promoting bone renewal.

Bone remodeling regulation may be affected by some diseases which promote an imbalance between bone deposition (density increase, as observed in the Hodgkin lymphoma ivory vertebra, blastic metastases, Paget's disease, and osteomyelitis) and resorption, particularly by osteoporosis.


THE SPINE

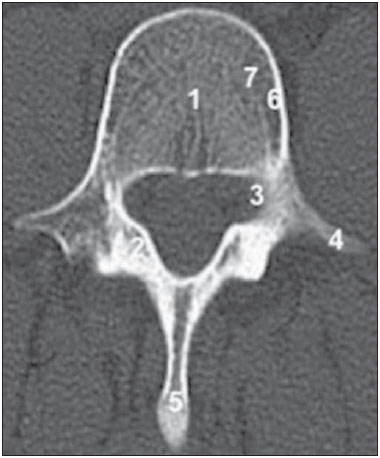

The vertebral body is composed of vascularized trabecular bone (spongy bone). The trabecular interstices are filled with red and yellow bone marrow, covered by a thin external layer of compact bone, which appears with a dense aspect on CT scans and X-rays. Figure 1 shows the typical aspect of a normal-density vertebra.




Variations in vertebral bone density are typical of several diseases. The finding of an ivory vertebra means that one or more vertebrae has been affected by a density increase without any changes in the opacity or size of the adjacent intervertebral discs. Increased opacity of the vertebra may be diffuse and homogeneous, and most or the entire vertebral body is sclerotic, giving it a hyperdense appearance⁽⁹⁾.

Even though diffuse increases in vertebral density are generally referred to ivory vertebra, there are specific imaging characteristics that may increase diagnostic accuracy.


DIFFERENTIAL DIAGNOSES

Paget's disease

Paget's disease of bone, also known as osteitis deformans, is a hypermetabolic bone disease that attacks one (monostotic) or more (polyostotic) bones. It is marked by areas of increased osteoclastic bone resorption followed by disorganized osteoblastic bone repair. Consequently, the architecture of the affected bone tissue is disrupted, resulting in increased volume and greater bone fragility⁽¹⁰⁾.

It typically affects the skull, spine, pelvis, and long bones of the lower limbs⁽¹⁰⁾, although almost any part of the skeleton may be affected.

Bone involvement is frequently found in the elderly, where incidence varies from 2.3% to 9% in older patients. It generally appears after 55 years of age, with slight predominance in males⁽¹¹⁾.

Most patients affected by Paget's disease of bone are asymptomatic, making it difficult to diagnose. In a study conducted by Collins, only 7 of the 24 cases (29%) were diagnosed while the patient was still alive⁽¹¹⁾. When present, reported symptoms are pain, due to bone lesions or excessive bone growth, and deformities in the affected areas, such as osteoarthritis or nerve compression.

Characteristics that facilitate the diagnosis

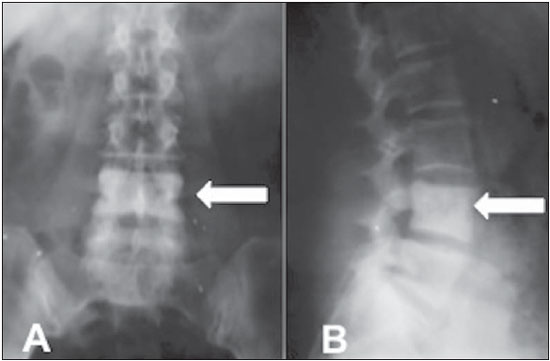

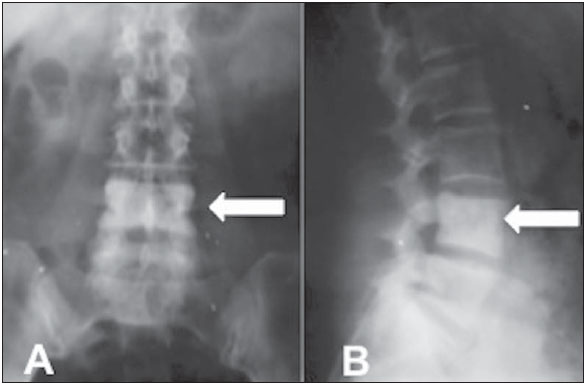

In Paget's disease of bone, there is thickening and homogeneous hyperdensity of trabecular bone, as seen in Figure 2. An increase in anteroposterior and lateral diameters may also occur, resulting in an increase in vertebral size, in some cases leading to complications such as spinal stenosis and root compression. In its polyostotic form, the disease affects more than one site. A finding of an ivory vertebra that has no apparent cause and remains and unchanged over time is normally attributed to asymptomatic Paget's disease of bone.




Lymphoma

Lymphomas are a heterogeneous group of primary neoplasms of the lymphoid tissue. Malignant lymphocytes normally accumulate on the lymph nodes, causing lymph node disease. Occasionally they may spread to the blood (leukemic phase) or infiltrate organs outside the lymphoid tissue. Lymphomas may be classified as Hodgkin disease, characterized by involvement of Reed-Sternberg cells, or non-Hodgkin lymphoma. Among all cases of lymphoma, 40-50% involve the skeletal system, generally from metastatic disease. This discovery, however, is frequently made only at autopsy, and not on X-rays⁽¹²⁾.

Imaging characteristics

Lymphomatous infiltration, originating from hematogenous dissemination or adjacent lymph node invasion, may have a marked effect on spongy bone. That involvement may lead to osteolysis, osteosclerosis, or a combination of the two. Lytic lesions are more common. Osteoblastic involvement is rare and generally secondary to Hodgkin lymphoma. In a study conducted by Granger et al.⁽¹³⁾, of 210 backbone lesions due to Hodgkin disease, only 13 had an ivory appearance.

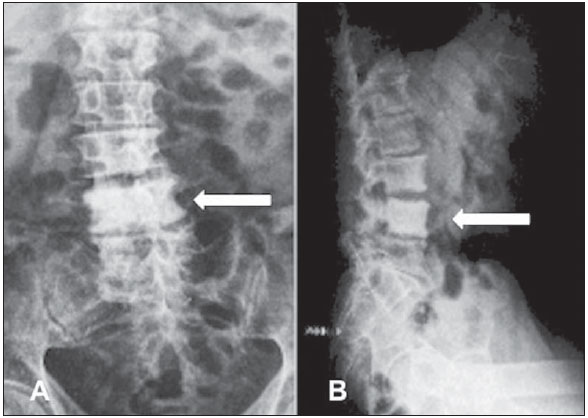

Para-aortic lymph node involvement, which is typical of lymphoma, with the formation of paraspinal masses, may cause erosions in the anterior and lateral margins of the vertebral body cortex. Therefore, imaging findings such as an increase in trabecular size and density, which may result in an ivory vertebra, together with alterations in the adjacent soft tissue, help establish the diagnosis, as can be seen in Figure 3.




Blastic metastases

Blastic metastatic lesions are most frequently the result of breast or prostate cancer, however, other metastatic tumors, including lymphoma, should be considered, together with other rare lesions, such as plasmacytoma, chordoma, and primary bone sarcoma⁽⁹⁾.

Imaging characteristics

In blastic metastases, osteoblasts are stimulated, resulting in irregular replacement of the spinal spongy tissue by amorphous and dense bone masses, which can converge. In imaging studies, these findings show up as an increase in vertebral density. Other characteristics that may increase the diagnostic specificity include the involvement of multiple spinal levels, blastic lesions in posterior spinal elements, and a known history of lung, kidney, or colon cancer, as well as, especially, prostate or breast cancer.

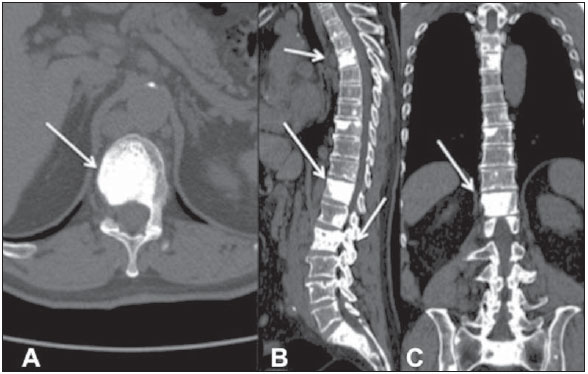

These characteristics can be seen in Figure 4, which shows a CT scan of a 62-year-old patient with primary prostate neoplasia. During staging, osteoblastic lesions were identified at various levels of the lumbar spine and hip.




Osteomyelitis

Osteomyelitis is a bone infection which leads to inflammatory destruction, followed by new bone formation. It is difficult to obtain viable information on the global incidence of vertebral osteomyelitis. In two studies, published in 1956 and 1991, the incidence of vertebral osteomyelitis was estimated at 1:250,000⁽¹¹⁾ and 1:450,000⁽¹⁴⁾, respectively. Osteomyelitis may be classified as acute, subacute, or chronic.

Pathophysiology

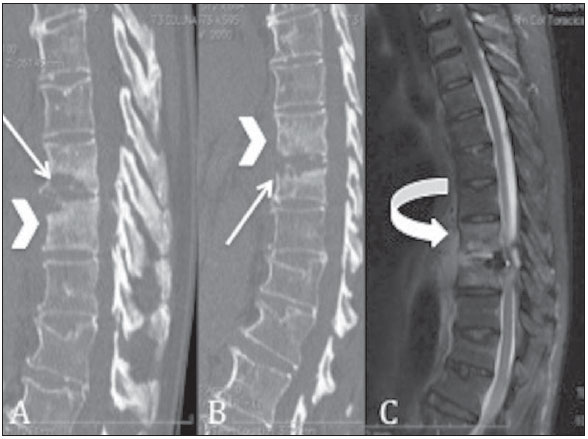

After gaining access to the spine in one of three basic ways (hematogenous dissemination, direct inoculation, and contiguous propagation of infected adjacent soft tissues), pathogens cause an acute suppurative infection with inflammatory cells, followed by edema, vascular congestion, and thrombosis. In the initial acute disease, the blood supply to the bones is compromised because the infection extends to the surrounding tissue. When the blood supply to the bone marrow and the periosteum is compromised, areas of dead bone tissue may form. Due to the lack of blood supply, the dead bone is whiter than the surrounding bone, which indicates a loss of density. Although spongy bone is quickly resorbed and may be completely broken down in two to three weeks, the necrotic cortex may take two weeks to six months to appear⁽¹⁵⁾. With these characteristics, imaging findings for osteomyelitis are very specific, as can be seen on Figure 5. Therefore, sclerosis of a vertebra may occur during the healing phase and can be accompanied by erosions at the margins of the intervertebral disc, adjacent fluid collections, and predisposing factors or events, such as underlying diseases, hospitalization, invasive procedures, and intravenous drug use, all of which may inform the diagnosis.


CONCLUSION

Ivory vertebra is sometimes the initial radiologic presentation for common diseases such as prostate carcinoma, lymphoma, and Paget's disease. It is therefore fundamental that radiologists be aware of its imaging characteristics, in order to better advise the requesting physician, and actively search for other lesions that might accompany it.
