DEFINITION AND EPIDEMIOLOGICAL ASPECTS

Snapping scapula syndrome is defined as an audible or palpable clicking of the scapula during movements of the scapulothoracic joint⁽¹⁾. It typically affects young, active patients, who often report a history of pain, resulting from overuse, during rapid shoulder movements or during sports activities⁽²⁾. These symptoms can have insidious onset, can occur after a change in the pattern of physical activity, or can be associated with trauma⁽³⁾.


ANATOMY AND BIOMECHANICS

The scapula is a flat, triangular bone that lies between the second and seventh ribs. As previously described^(3–5), it has two surfaces (ventral and dorsal), three borders (superior, lateral, and medial), and three angles (superomedial, inferomedial, and lateral).

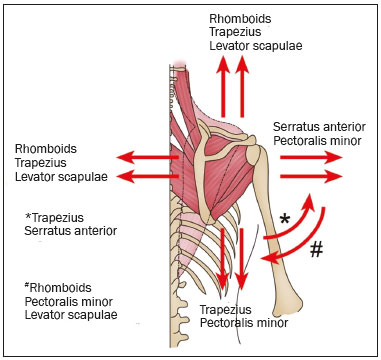

The articulation between the scapula and the rib cage is one of the most incongruous in the human body, because it does not have true joint structures but rather is surrounded by a complex of muscles, which is divided into three layers: superficial, intermediate, and deep. The superficial layer comprises the trapezius and latissimus dorsi muscles, which can be accompanied by a bursa located between the inferomedial angle and superficial fibers of the latissimus dorsi muscle⁽³⁾. The intermediate layer consists of the major rhomboid, minor rhomboid, and levator scapulae muscles. The trapezoid bursa lies between the trapezius muscle and the base of the shoulder blade. The deep layer consists of the serratus anterior and subscapularis muscles, containing the infraserratus bursa, located between the serratus anterior muscle and the rib cage, and the supraserratus bursa, located between the serratus anterior and subscapularis muscles⁽³⁾. Figure 1 illustrates the bursae and their respective anatomical relationships. The control and proper positioning of the scapula are fundamental for the correct functioning of the glenohumeral joint. During normal shoulder movement, the scapula needs to be properly aligned in multiple planes of motion, a situation that depends on harmonic and synchronous actions between the various scapular muscles. The scapula receives different combinations of forces exerted by the muscles inserted therein, producing movements of abduction, adduction, elevation, depression, and rotation (Figures 2 and 3). There is an arc-of-motion pattern between the glenohumeral joint and the scapulothoracic joint, known as the scapulohumeral rhythm, which has a 2:1 ratio. In other words, for every two degrees of movement of the humerus, the scapula moves one degree⁽⁶⁾, as depicted in Figure 4.

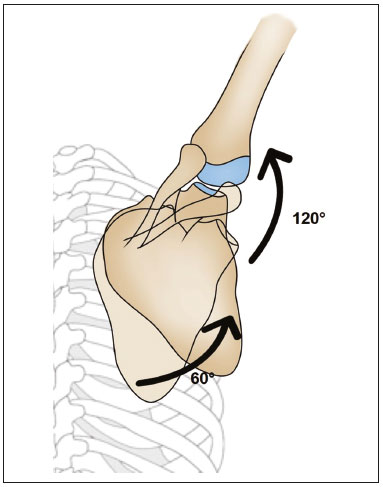

Figure 4. Schematic representation of the 2:1 scapulohumeral rhythm. For example, during a 180° abduction of the arm, 60° are achieved by rotation of the scapula and 120° are achieved by rotation of the humerus.


ANATOMICAL VARIATIONS AND DISEASES THAT CAN CAUSE THE SYNDROME

Superomedial angle of the scapula and anatomical variations

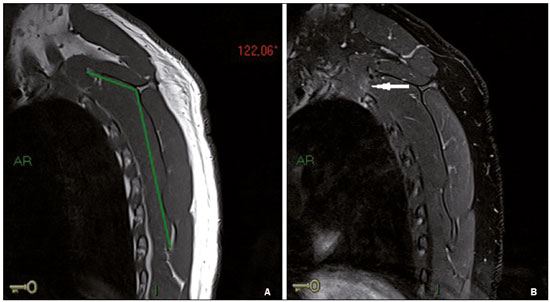

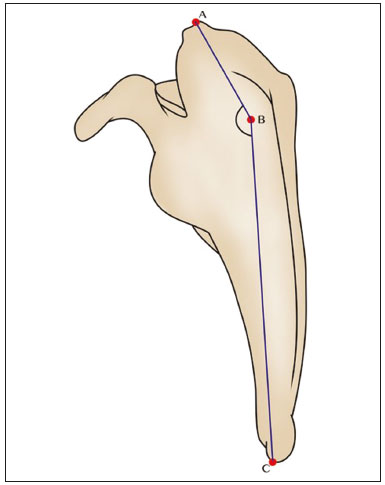

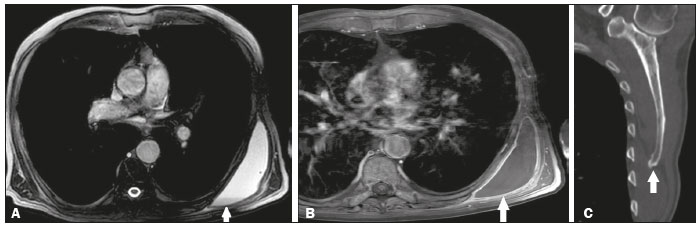

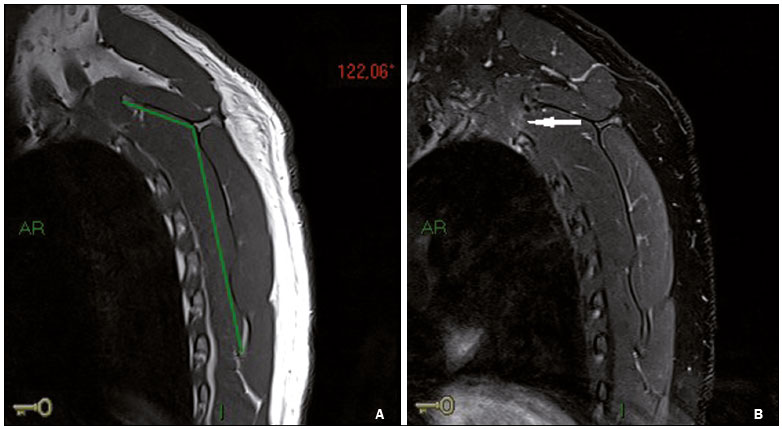

The scapulothoracic joint is cushioned by the serratus anterior and subscapularis muscles, as well as by the bursae⁽⁷⁾. The superomedial angle, inferomedial angle, and medial border of the scapula are relatively less protected by underlying muscles and bursae, and the upper medial border and lower pole exhibit wide anatomical variability^(4,7). When no obvious deformity is found, one should look for anatomical variations, such as an anomalous anterior curvature of the superomedial angle of the scapula, which is considered one of the main causes of the syndrome. The superomedial angle of the scapula has been measured in anatomical specimens and found to range from 124° to 162° (mean, 144.34 ± 9.09°)⁽⁷⁾; when the angle is lower than 142°, the chances of scapular snapping increase⁽⁸⁾. The superomedial angle is measured on the anterior surface of the scapula, with three anatomical reference points (Figures 5 and 6): the superior angle, the spine, and the inferior angle. A bone projection at the lower pole is the second most common site for symptoms⁽⁴⁾ (Figure 7).




The Luschka tubercle

The Luschka tubercle is a hook-shaped bony protuberance, located at the upper medial border of the scapula, which can reduce the space between the scapula and the rib cage and be a predisposing factor for scapular snapping⁽⁷⁾.

Scapular dyskinesia, insufficiency of the serratus anterior muscle, and injury of the long thoracic nerve

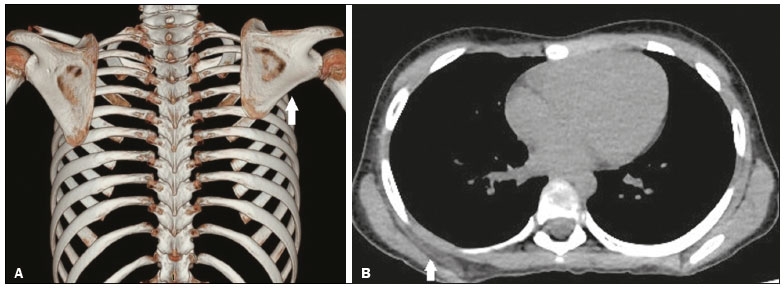

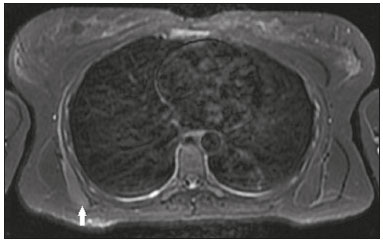

Scapular dyskinesia, a common clinical finding, is defined as abnormal movement, positioning, or function of the scapula during shoulder movement. It can be the cause or consequence of many forms of shoulder pain and dysfunction. There are multiple causes of dyskinesia. Articulatory causes include acromioclavicular joint arthrosis, glenohumeral joint instability, and glenohumeral joint disorder. Musculoskeletal causes include thoracic kyphosis and nonunion of a clavicular fracture, as well as shortening, rotation, or angulation of the clavicle. Neurological causes include paralysis of the long thoracic nerve, paralysis of the eleventh cranial nerve, and cervical radiculopathy⁽⁹⁾, as depicted in Figures 8 and 9. The most common mechanisms involve imbalances of the intrinsic musculature, with inflexibility or inhibition of normal muscle activation⁽⁹⁾. Scapular snapping can be present in dyskinesias, because the abnormal movements bring the extremities of the scapula into closer proximity to the rib cage. Regardless of the cause of dyskinesia, the final result in most cases is a scapula in pronation, which is not conducive to optimal shoulder function and results in subacromial space reduction with symptoms of impingement⁽⁹⁾.




Sequelae of fractures of the scapula and rib cage

The sequelae of fractures of the scapula and rib cage can cause bone deformities. Such deformities can increase the friction among the structures of the scapulothoracic joint⁽¹⁰⁾.

Bursitis

Scapulothoracic bursitis can occur after a single traumatic insult, as a result of repetitive movements of the scapulothoracic joint, or as a result of scapular dyskinesia. Abnormal scapular movement can be caused by overuse of the muscles, muscle imbalance, or pathological conditions of the glenohumeral joint⁽³⁾. When the muscles of the costal surface of the scapula decrease in size, the scapula rotates forward, coming into closer proximity to the rib cage, generating friction with the chest wall during movement, causing inflammation in the scapulothoracic space⁽³⁾, as shown in Figures 7 and 10.




Bone tumors

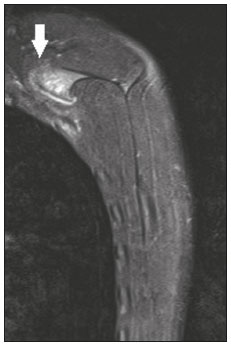

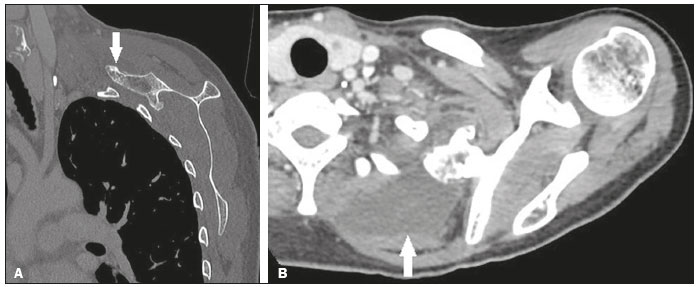

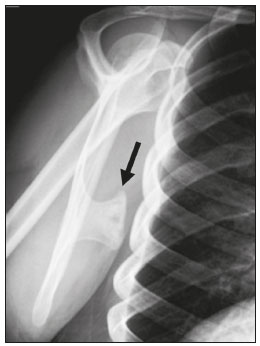

Osteochondroma, also known as exostosis, is the most common benign primary bone tumor of the scapula, being solitary in approximately 90% of cases and multiple, in the form of hereditary multiple exostoses, in approximately 10%. Such tumors are considered alterations of the growth plate, specifically its failure to increase in size during skeletal maturation⁽¹¹⁾. They usually involve the metaphysis of long bones and, more rarely, the scapula (in 4–6% of cases). An osteochondroma can be symptomatic, mainly due to its mass effect, creating the appearance of scapular winging, together with crackles, and altering the scapulothoracic movement. It can also cause neurovascular compression, fractures, inflammation of the bursa, or malignant transformation⁽¹¹⁾ (Figures 10–12). Although scapular chondrosarcoma is rare, the scapula is the second most common site of involvement of this disease, especially among men between 40 and 70 years of age^(3,4).




Elastofibromas

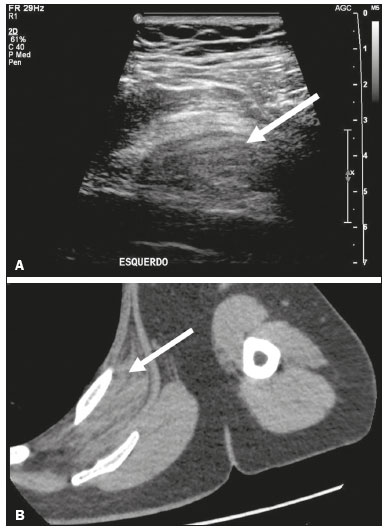

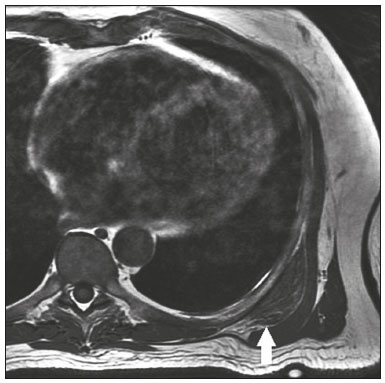

An elastofibroma is a benign soft tissue tumor with slow growth and a prevalence rate of up to 24% in the elderly, being most common among women between 55 and 70 years of age. Elastofibromas are believed to occur in response to repetitive microtrauma caused by friction between the scapula and the chest wall. An elastofibroma is typically located at the lower pole of the scapula, deep within the serratus anterior and latissimus dorsi muscles. It can manifest as an increase in subscapular or infrascapular volume, moderate discomfort or pain, crackles, clicking (snapping), or a blocked scapula⁽¹²⁾, as depicted in Figures 13 and 14.




CONCLUSION

Although snapping scapula syndrome is rare, it can cause severe pain and functional limitation. Therefore, radiologists should be able to recognize its imaging findings. In this pictorial essay, we have illustrated the main causes of the syndrome, using imaging examinations.


REFERENCES

1. Morgado S, Antunes F. Síndrome de escápula crepitante. Revista da Sociedade Portuguesa de Medicina Física e de Reabilitação. 2010;19:23–6.

2. Merolla G, Cerciello S, Paladini P, et al. Snapping scapula syndrome: current concepts review in conservative and surgical treatment. Muscles Ligaments Tendons J. 2013;3:80–90.

3. Lazar MA, Kwon YW, Rokito AS. Snapping scapula syndrome. J Bone Joint Surg Am. 2009;91:2251–62.

4. Kuhne M, Boniquit N, Ghodadra N, et al. The snapping scapula: diagnosis and treatment. Arthroscopy. 2009;25:1298–311.

5. Frank RM, Ramirez J, Chalmers PN, et al. Scapulothoracic anatomy and snapping scapula syndrome. Anat Res Int. 2013;2013:635628.

6. Scibek JS, Carcia CR. Assessment of scapulohumeral rhythm for scapular plane shoulder elevation using a modified digital inclinometer. World J Orthop. 2012;3:87–94.

7. Aggarwal A, Wahee P, Harjeet, et al. Variable osseous anatomy of costal surface of scapula and its implications in relation to snapping scapula syndrome. Surg Radiol Anat. 2011;33:135–40.

8. Mozes G, Bickels J, Ovadia D, et al. The use of three-dimensional computed tomography in evaluating snapping scapula syndrome. Orthopedics. 1999;22:1029–33.

9. Roche SJ, Funk L, Sciascia A, et al.. Scapular dyskinesis: the surgeon’s perspective. Shoulder Elbow. 2015;7:289–97.

10. Burn MB, McCulloch PC, Lintner DM, et al. Prevalence of scapular dyskinesis in overhead and nonoverhead athletes: a systematic review. Orthop J Sports Med. 2016;4:2325967115627608.

11. Jindal M. Delayed presentation of osteochondroma at superior angle of scapula – a case report. J Orthop Case Rep. 2016;6:32–4.

12. Britto AVO, Rosenfeld A, Yanaguizawa M, et al. Avaliação por imagem dos elastofibromas da cintura escapular. Rev Bras Reumatol. 2009;49:321–7.
